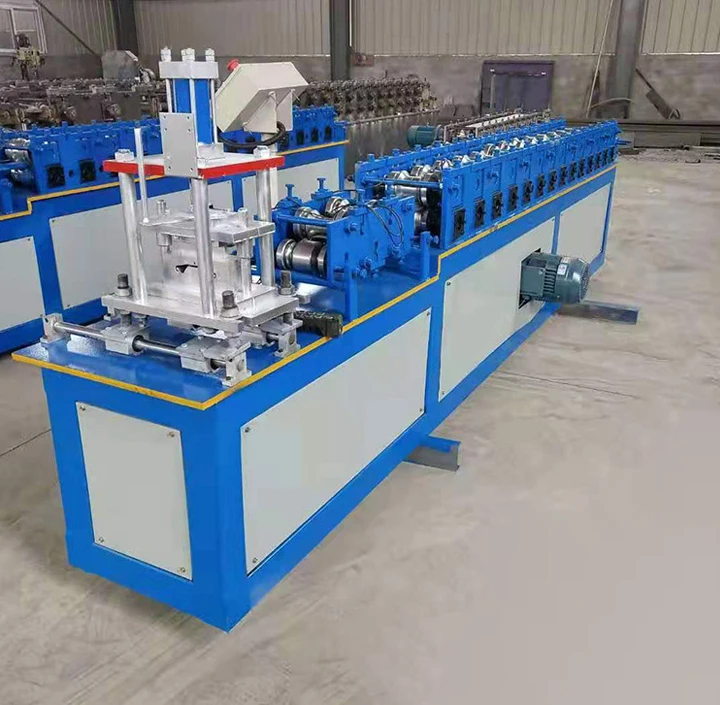

Steel Roll Up Security Door Metal Warehouse Container Roller Shutter Doors Machine

Henan WadJay Machinery Co.Ltd

Steel Roll Up Security Door Metal Warehouse Container Roller Shutter Doors Machine

Brand Name : WADJAY

Model Number : Roller Shutter Doors Machine

Certification : ISO 9001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100 sets / month

Delivery Time : 15 working days

Packaging Details : wooden case

Production Capacity : 25 m/min

Voltage : 380V 50Hz 3phases

Weight : 1800 kg

Rolling thinckness : 0.3-1mm

Thickness : 0.6--1 mm

Feeding width : 600mm

Contact Now

Steel Roll Up Security Door Metal Warehouse Container Roller Shutter Doors Machine


Product Overview

Rolling Shutter Door Roll Forming Machine
Rolling shutter door machine adopts cold-formed steel door and window material made of color-coated plate and stainless steel plate, which has the characteristics of good sealing performance, beautiful appearance and long service life; composite rolling door uses cold-formed steel, which is a new type of material for fireproof doors. A large number of cold-formed steels are also used in various keels and decorative strips for decoration in the construction industry. There are many types and specifications of cross-sections required. The materials used include galvanized sheets, color-coated sheets, stainless steel and aluminum alloys.
00:00
00:45
PRODUCT SPECIFICATIONS
No
Item
Data
1
Raw material width
300-600 mm
2
Sheet effective width
80-200 mm
3
Raw material
Color steel sheet , Stainless steel or galvanized steel sheet
4
Material thickness
0.3-0.8 mm or customized
5
Forming roller material
45# steel plated with chrome
6
Shaft diameter
40 mm
7
Forming roll station
8-16 steps
8
Main motor power
3 KW 4 KW 5.5 KW(according to type)
9
Hydraulic power
4 KW (according to type)
10
Control system
PLC control
The roller shutter door machine is made by cold-formed forming process. It is widely used by people for its energy-saving and environmentally friendly features. It uses less steel to complete the required specified load, and no longer depends on increasing the amount of plates or materials. The mechanical properties of the steel can meet the load requirements, but the mechanical properties of the steel can be improved by changing the cross-sectional shape of the steel product. Cold bending is a material-saving and energy-saving new metal forming process and new technology. Cold bending is a multi-pass forming and rolling that is arranged in sequence to continuously bend the coils and other metal plates and strips in the transverse direction. Make profiles of specific cross-sections
Details Images
Decoiler
Rolling Shutter Door Making Machine load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also can choose electric loading frame or hydraulic loading frame.
This loading frame decoiler also can use in other type machine, customer can buy it alone.
Machine frame
Rolling Shutter Door Making Machine adopts welded steel frame structure, it make sure roof sheet machine can operation more stable
AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.
Forming roller
Rolling Shutter Door Making Machine forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers

Product Tags:

Roller Shutter Doors Machine



door roll forming machine
