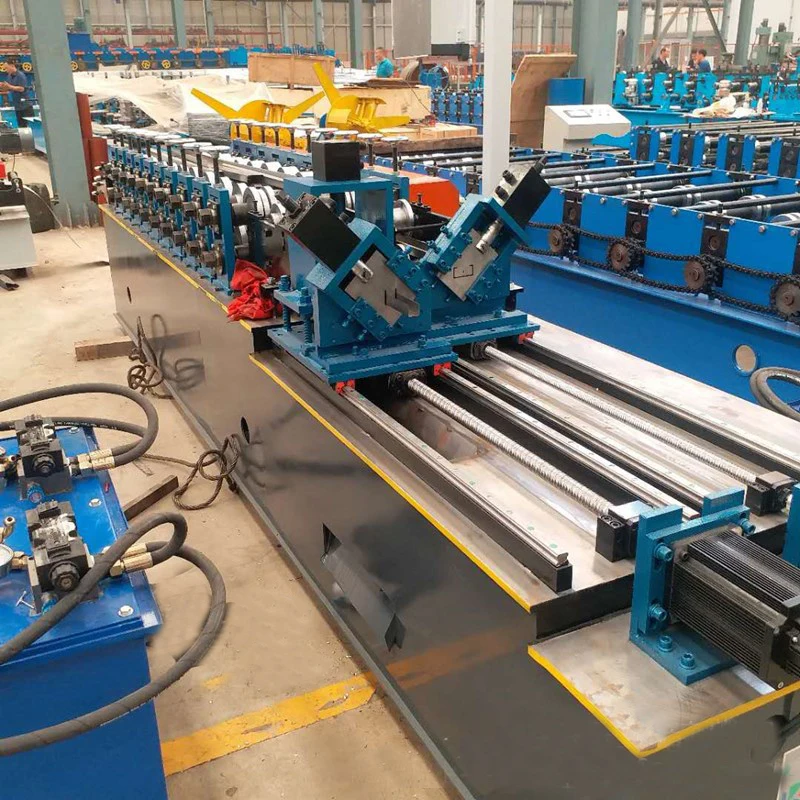

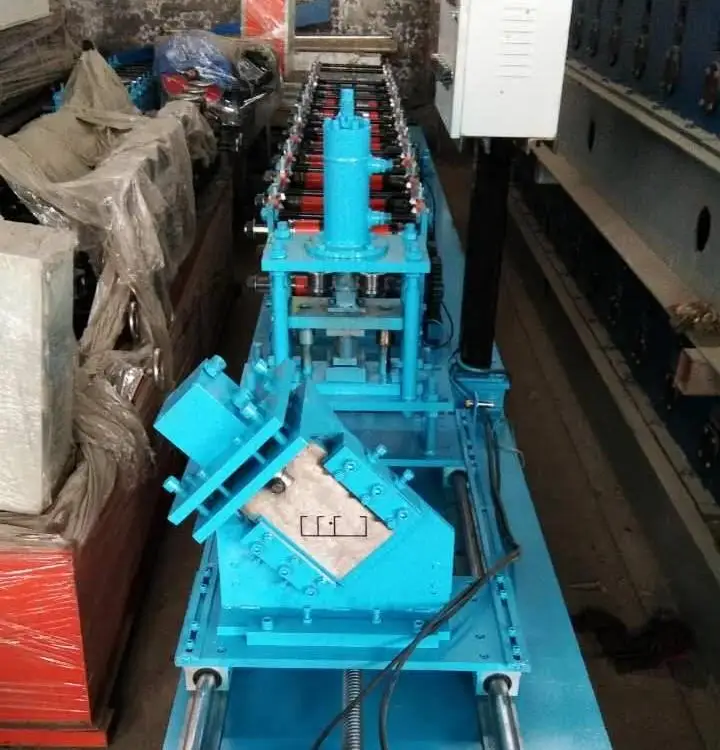

steel panel cold bending light keel roll forming machines

Name: steel panel cold bending light keel roll forming machines
Brand: WADJAY
Price: 1 USD

Best steel panel cold bending light keel roll forming machines wholesale

Brand Name : WADJAY

Model Number : light keel roll forming machines

Certification : ISO 9001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100 sets / month

Delivery Time : 15 working days

Packaging Details : wooden case

Production Capacity : 25 m/min

Voltage : 380V 50Hz 3phases

Dimension(L*W*H) : 6.5*1.8*1.6 meter

Weight : 1800 kg

Rolling thinckness : 0.3-1mm

Feeding width : 600mm

Contact Now

Product Overview

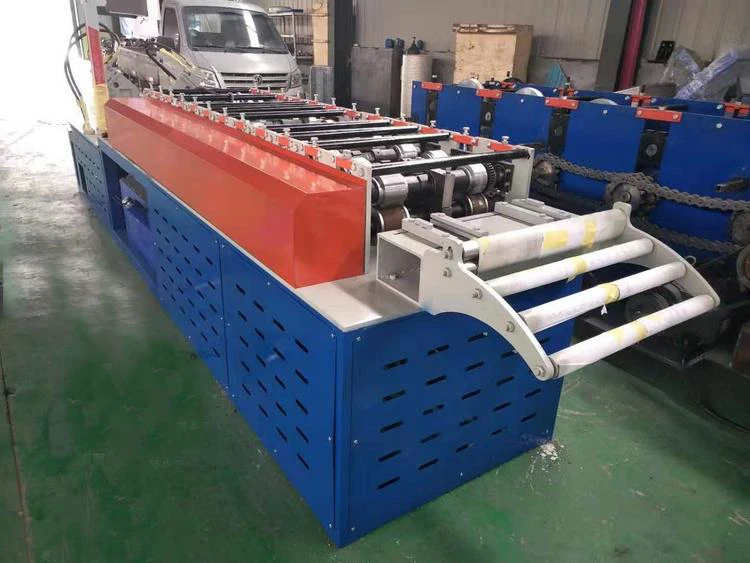

Light Gauge Roll Forming Machine

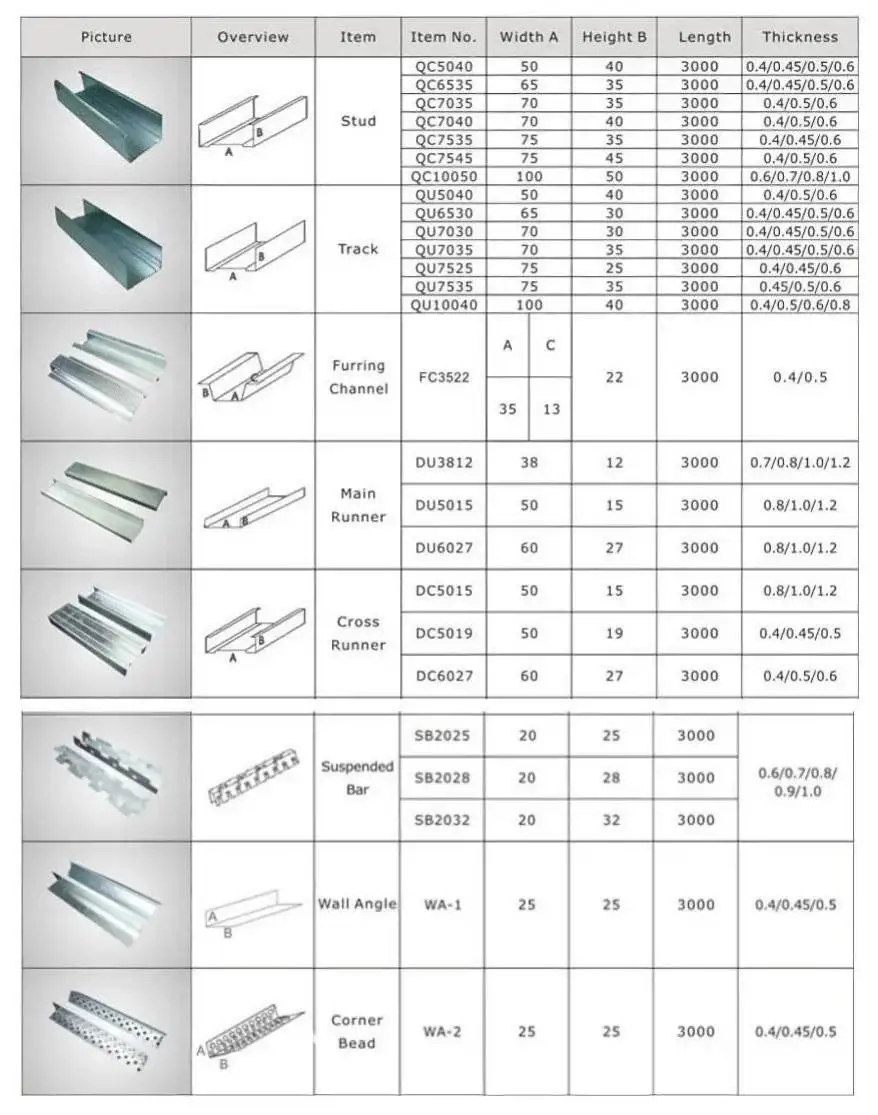

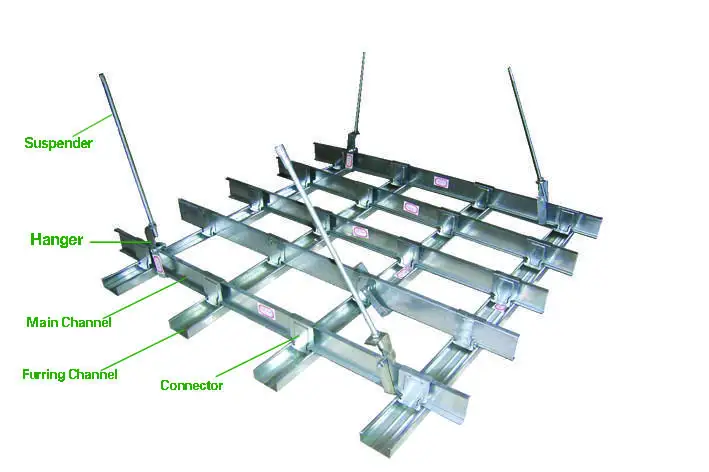

Light gauge roll forming machine, the light steel keel is made of high-quality continuous hot-dip galvanized sheet and strip as raw materials, and is rolled into a metal frame for construction through a cold bending process. It is suitable for the decoration of the roof of various buildings, the inner and outer walls of the building and the scaffold The base material of the suspended ceiling. The light steel keel includes ceiling keel and partition keel according to the purpose, and V-shaped, C-shaped, T-shaped, L-shaped and U-shaped keels according to the cross-sectional form.

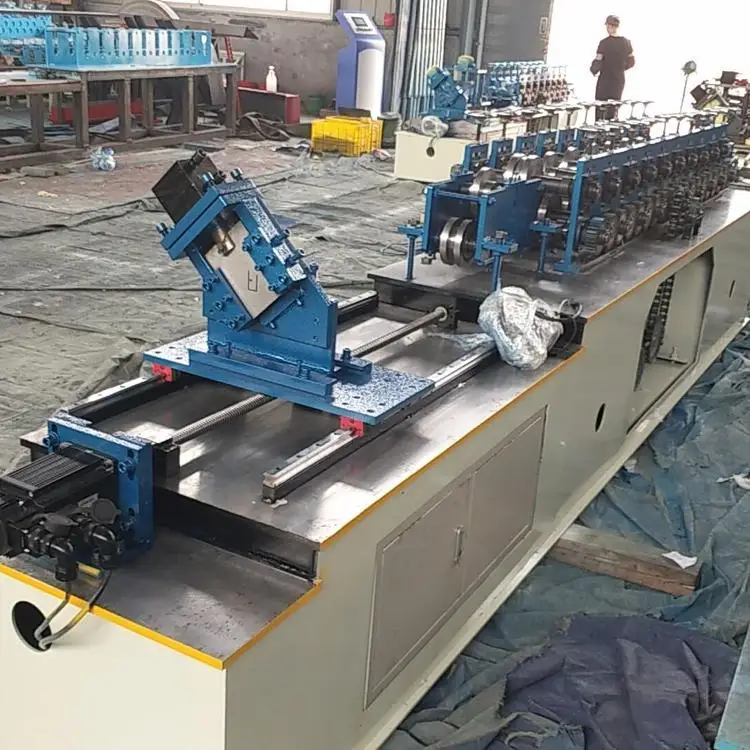

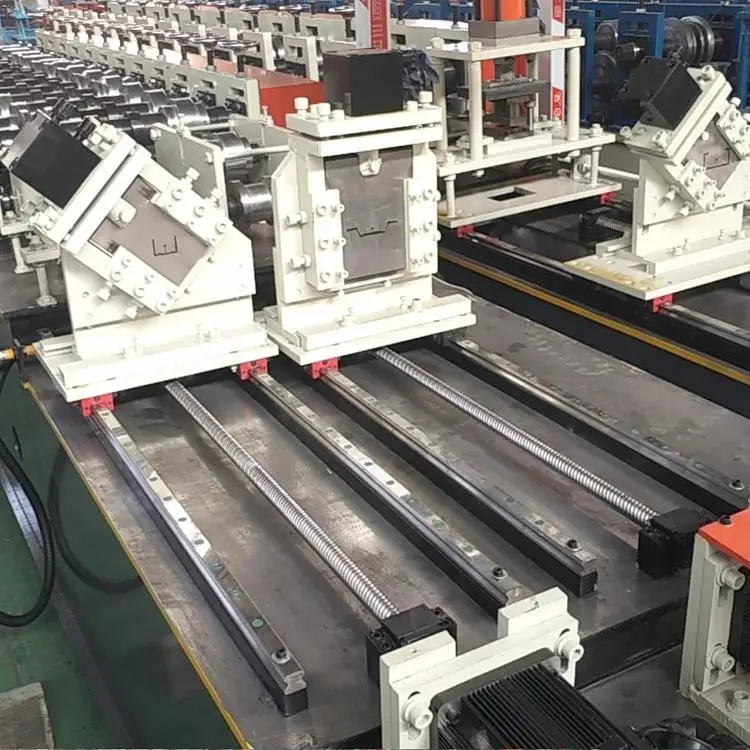

This wall stud roll forming machine produces multi-profiles and size-changing by the spacer. In fact, it is multi size wall stud and tracks machine for multi-profiles,size-changing by the spacer.There is an enlarged hydraulic station to ensure high-speed working. Easy operation, low maintenance cost.

steel panel cold bending light keel roll forming machines

00:00

01:02

PRODUCT SPECIFICATIONS

No	Item	Data
1	Raw material width	50-200 mm
2	Sheet effective width	38-100 mm
3	Raw material	Color steel sheet or galvanized steel sheet
4	Material thickness	0.3-0.8 mm or customized
5	Forming roller material	45# steel plated with chrome
6	Shaft diameter	40 mm
7	Forming roll station	8-16 steps
8	Main motor power	3 KW 4 KW 5.5 KW(according to type)
9	Hydraulic power	4 KW (according to type)
10	Control system	PLC control

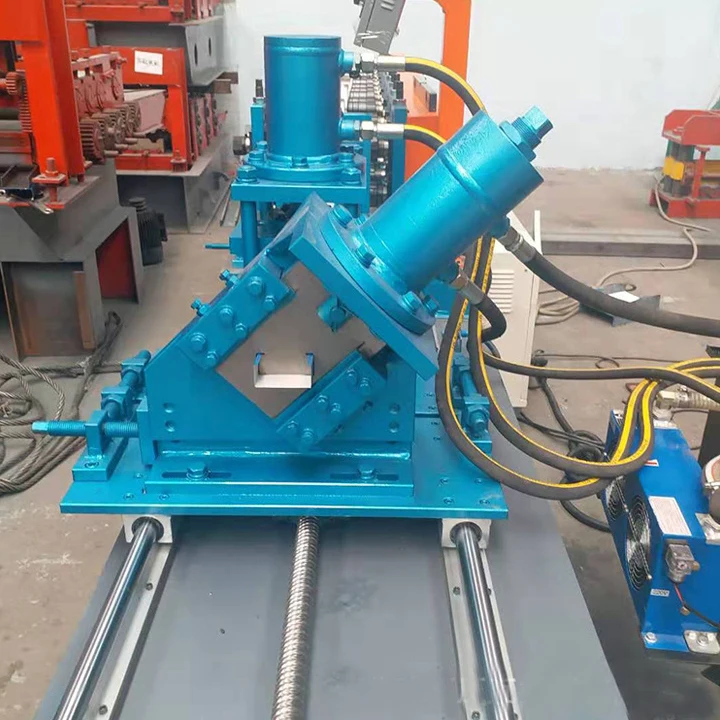

The keel machine uses strip steel as raw material and is formed by continuous cold rolling to produce complex cross-section profiles (products include: light steel keel, paint keel, cassette keel, various building profiles, steel structures, steel-lined door frame profiles, high-speed protection Bar, etc.) and different specifications of cold bending and baking unit equipment, using PLC control. Keel machine equipment composition: feeder, guide frame, forming host, correction device, cut-to-length part, receiving table, electrical control part, etc.

Details Images

Decoiler

Light gauge roll forming machine load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also can choose electric loading frame or hydraulic loading frame.  This loading frame decoiler also can use in other type machine, customer can buy it alone.

Machine frame

Light gauge roll forming machineadopts welded steel frame structure, it make sure roof sheet machine can operation more stableAC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.

Forming roller

Light gauge roll forming machine forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers

Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.

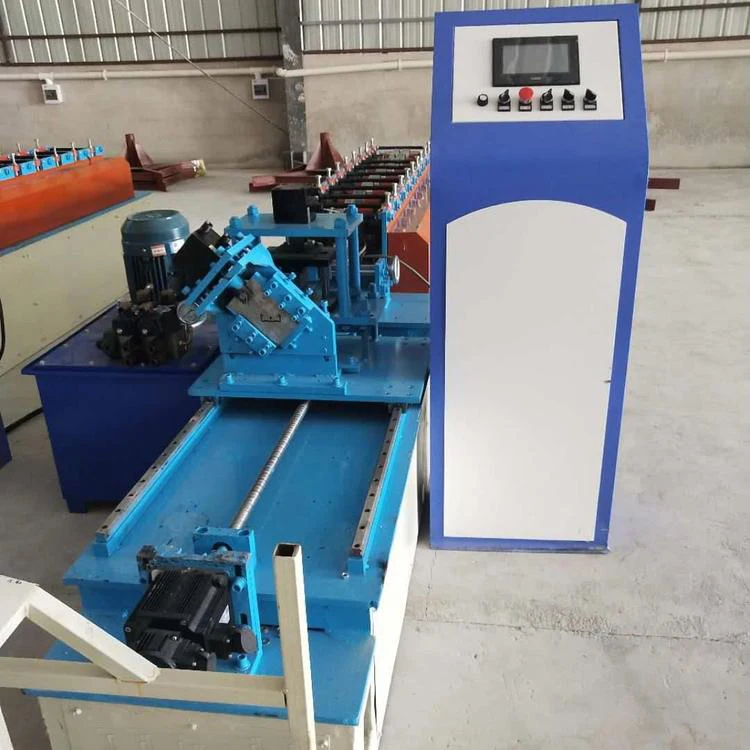

Control part

Light gauge roll forming machine control parts have different types, standard type are button control, through press buttons to realize different function.
PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.

Successful Project

Project in Thailand

Project in India

Project in Russia

Company Profile

Henan Wadley is specialized in the production of roll forming machinery.Our company was established in 2017, it is located in the capital of Henan Province - Zhengzhou, which is the center of the business and economy. Our products have passed the international ISO9001: 2008 quality management system certification. We have established good relationship with our customers from more than 100 countries .

 Main products: Roll forming machine, Roof sheet make machine, C Z purlin roll forming machine,CNC lathe, CNC machine center, boring machine, drilling machine, milling machine, sawingmachine, gear hobbing machine, metal tapping machine and so on. any requires please contact us
